HYGH Technology Co., Ltd. provides a complete range of board-mount isolated DC-DC converters spanning 25 Watts to 600 Watts. Available in industry-standard DIP brick form factors — including 1/16 brick, 1/8 brick, 1/4 brick, half brick, and full brick packages. Engineered for demanding industrial environments, these converters feature 2:1 standard, 4:1 wide, and 10:1 ultra-wide input voltage ranges, delivering peak conversion efficiency up to 93% with robust thermal performance from -40°C to +100°C baseplate temperatures.

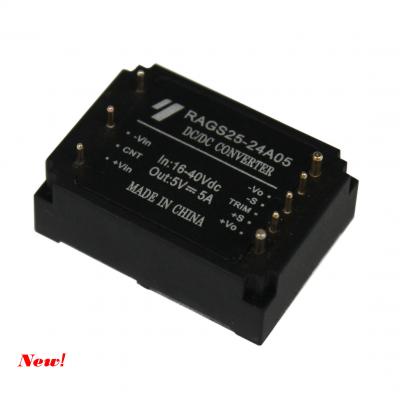

Compact 25W isolated 1/16 brick converter designed for high-density industrial control systems requiring 5V output.
| Input Voltage | 16–40V DC |
| Output | 5V / 5A (25W) |
| Efficiency | 92.0% Typ. |
| Package | 1/16 Brick DIP |
High-power density 50W 1/16 brick power module delivering 5V/10A with minimal thermal overhead.
| Input Voltage | 16–40V DC |
| Output | 5V / 10A (50W) |
| Efficiency | 92.0% Typ. |
| Package | 1/16 Brick DIP |

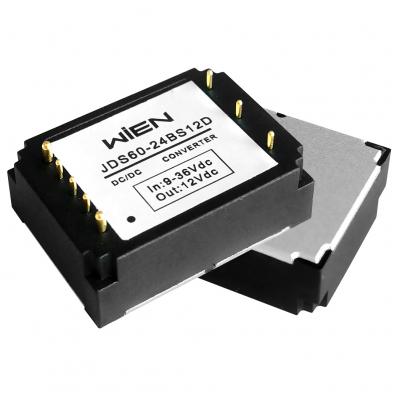

Wide input 60W isolated DC-DC converter featuring 12V regulated output for instrumentation and power distribution.
| Input Voltage | 9–36V DC (4:1 Wide) |
| Output | 12V / 5A (60W) |
| Efficiency | 91.5% Typ. |
| Package | 1/16 Brick DIP |
Telecom input 36-75V DC-DC converter module with complete protection against UVP, OVP, OCP, and OTP.
| Input Voltage | 36–75V DC (2:1) |
| Output | Up to 60W |
| Protection | UVP, OVP, OCP, OTP |
| Package | 1/16 Brick DIP |

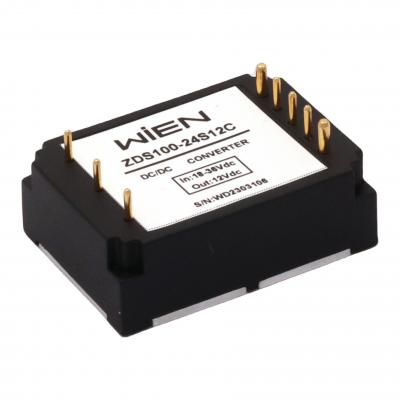

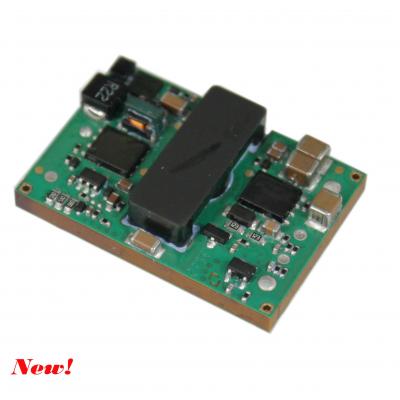

Ultra-wide 18-75V input isolated converters delivering up to 100W power rating in a 1/16 brick footprint.
| Input Voltage | 18–75V DC (4:1 Wide) |
| Output Power | 75W – 100W |
| Efficiency | 92.0% Typ. |
| Package | 1/16 Brick DIP |
Extended temperature isolated power module capable of operating up to +100°C baseplate temperature.
| Input Voltage | 16–40V DC |
| Output Options | 5V/82.5W, 12V/100W |
| Operating Temp | -40°C to +100°C |
| Package | 1/16 Brick DIP |
100W eighth-brick isolated DC-DC converter featuring 9-36V input range and 5V/20A high current output.
| Input Voltage | 9–36V DC (4:1 Wide) |
| Output | 5V / 20A (100W) |
| Efficiency | 92.0% Typ. |
| Package | 1/8 Brick DIP |

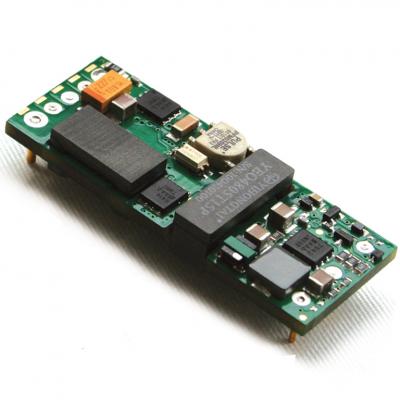

Telecom 48V standard eighth brick series compliant with global CE standards for networking infrastructure.
| Input Voltage | 36–75V DC |
| Output Range | 40W – 120W |
| Certifications | CE Mark Certified |
| Package | 1/8 Brick DIP |

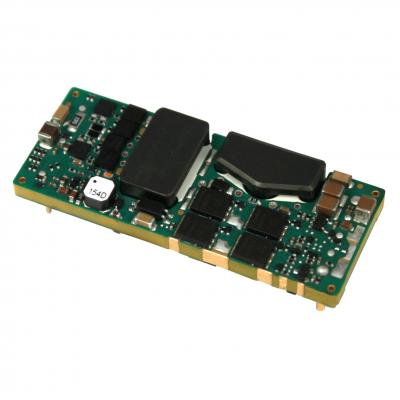

Ultra-high power density 240W eighth brick converter achieving an outstanding 16.3W/cm³ power density.
| Input Voltage | 36–75V DC |
| Output | 12V / 20A (240W) |
| Power Density | 16.3W/cm³ |
| Package | 1/8 Brick DIP |

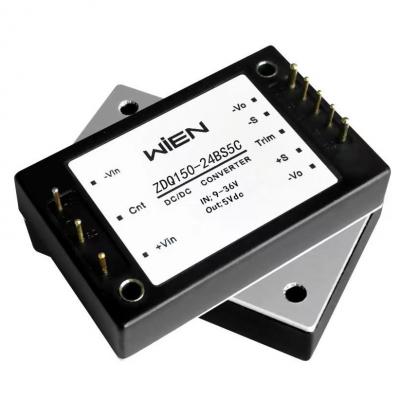

Wide input 9-36V quarter brick power supply module offering up to 93% efficiency for industrial automation.
| Input Voltage | 9–36V DC (4:1) |
| Output Power | 100W – 150W |
| Efficiency | 93.0% Typ. |
| Package | 1/4 Brick DIP |

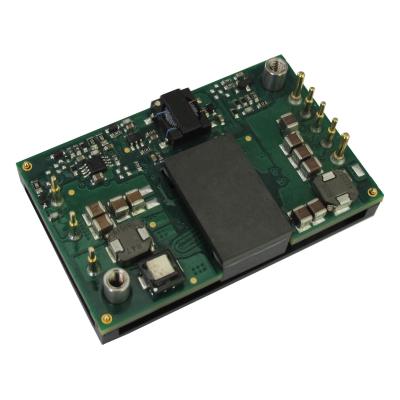

Quarter brick isolated converter series providing 65W to 132W power conversion across 18-36V and 36-75V inputs.
| Input Voltage | 18–36V / 36–75V DC |
| Output Power | 65W – 132W |
| Efficiency | 93.0% Typ. |
| Package | 1/4 Brick DIP |

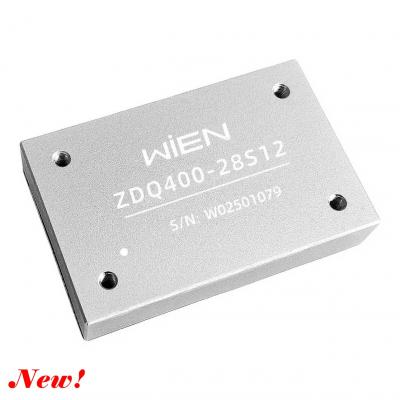

High-power 400W quarter brick converter featuring 2250VDC isolation voltage for demanding industrial systems.
| Input Voltage | 16–40V DC |
| Output | 12V / 33.3A (400W) |
| Isolation | 2250V DC |
| Package | 1/4 Brick DIP |
At HYGH Technology Co., Ltd., all wide-input brick isolated DC-DC converters are engineered to meet stringent international quality, safety, and electromagnetic compatibility standards. Designed for mission-critical installations in telecommunications, intelligent electric grids, industrial automation, and monitoring systems, our modules offer key technical advantages:
Our brick DC-DC power modules are widely deployed across global industries including:
Looking for detailed datasheets, 3D CAD models, or custom input/output voltage configurations? Contact our power engineering specialists today.
