Versatile Form Factors for Healthcare & Medical Devices
Designing power architectures for modern medical electronics requires flexibility in installation and layout. HYGH Technology Co., Ltd. provides medical AC/DC power supplies across three primary structural configurations:
External Adapters
12W to 220W desktop and wall-mount adapters for portable diagnostic devices.
Chassis / Open Frame
45W to 200W compact PCB open-frame & enclosed modules for internal integration.
Rack Mount Systems
240W to 680W high-power rack-mount units for surgical rooms and imaging setups.
Featured Medical Power Supply Series
Our medical power supply portfolio features high power density, active Power Factor Correction (PFC), and advanced protection against over-voltage, over-current, and short-circuit conditions.
MKP / MCP 150W Series Medical Power Supply
Ultra-compact 150W medical switching power supply featuring extreme power density (28W/in³) and energy efficiency up to 94%. Fully certified under EN60601-1 safety standards for patient-proximity applications.

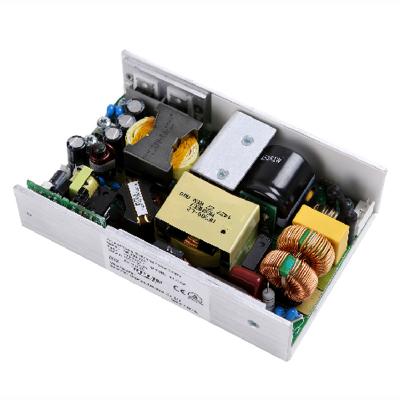

MP 300W / 400W Series Medical Power Supply
High-capacity 300W–400W medical power units with universal 85–264VAC input and active PFC. Achieves up to 93% conversion efficiency with Body Floating (BF) safety rating for medical instrumentation.
Technical Specifications & Compliance Overview
All medical power modules manufactured by HYGH Technology Co., Ltd. undergo 100% full-load burn-in testing and comprehensive electrical safety validation before shipment.
| Parameter / Feature | Medical Power Supply Standard Specification |
|---|---|
| Output Power Range | 12W – 680W (Single / Dual Output Configurations) |
| Input Voltage Range | Universal 85VAC – 264VAC (47Hz – 63Hz) |
| Isolation Protection | 2x MOPP (Means of Patient Protection), 4000VAC Isolation |
| Leakage Current | Earth Leakage < 300µA, Touch Leakage < 100µA (BF Rated) |
| EMC Emission Standards | EN55011 / CISPR11 Class B, FCC Part 15J Class B |
| Medical Safety Compliance | ANSI/AAMI ES60601-1, IEC/EN 60601-1 3rd Edition, CE, RoHS |
| Operating Temperature | -20°C to +70°C (Derating above 50°C) |
Medical & Healthcare Application Fields
Our medical AC/DC power supplies provide clean, regulated DC power to mission-critical healthcare systems globally, including:
- Patient Monitoring & Vital Sign Recorders
- Surgical Equipment & Operating Room Displays
- In-Vitro Diagnostic (IVD) & Blood Analysis Instruments
- Medical Imaging & Ultrasound Scanners
- Dental Care & Ophthalmic Processing Systems
- Home Healthcare & Respiratory Care Devices
Request Medical Power Supply Datasheets & OEM Quotes
Looking for custom voltage outputs, modified enclosures, or technical datasheets? Connect directly with the engineering team at HYGH Technology Co., Ltd. for fast technical assistance and volume pricing.
Send an Inquiry
