Board Mount 2.5W–300W

High-Reliability Board Mount AC/DC Power Supply Modules (2.5W to 300W)

HYGH Technology Co., Ltd. supplies encapsulated board mount AC/DC power modules ranging from 2.5W to 300W in compact SIP (Single In-line Package) and DIP (Dual In-line Package) form factors. Featuring universal wide input voltage ranges (85Vac to 305Vac) and input-to-output isolation ratings from 1500Vac up to 4000Vac, our products carry international safety certifications (CE, EN60950, EN62368).

Engineered for mission-critical electronics, HYGH power modules deliver extended mean time between failures (MTBF), low standby losses, and thermal stability from -40°C to +85°C. Ideal for smart grid automation, telecommunications, electric power instruments, railway control, and industrial process monitoring systems worldwide.

Universal Input: 85–305Vac Isolation: 1500Vac–4000Vac Package: SIP / DIP / Full Brick CE & RoHS Compliant Industrial Temp: -40°C to +85°C

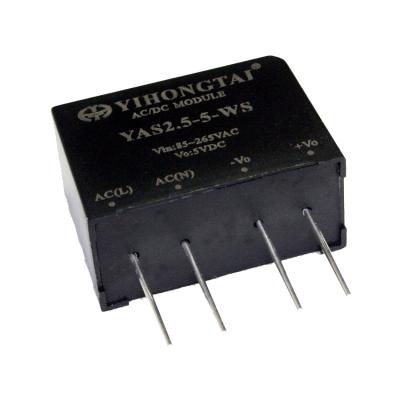

AC/DC Converter YAS2.5W Series SIP Package

AC/DC Converter YAS2.5W Series

2.5W SIP AC/DC converter featuring compact board-mount design, ultra-high cost performance, and 2500Vac isolation voltage.

Power Output: 2.5W
Package: SIP Encapsulated
AC/DC Power Modules YAS2.5WD Series DIP Package

AC/DC Power Modules YAS2.5WD Series

2.5W DIP package AC/DC power supply module designed for high-density printed circuit board installation with low ripple and noise.

Power Output: 2.5W
Package: DIP Plastic Case
AC-DC Converters YAS3W Series

AC-DC Converters YAS3W Series

3W universal AC input (85-265Vac) power converter module with 2500Vac isolation voltage and short-circuit protection.

Power Output: 3W
Isolation: 2500Vac

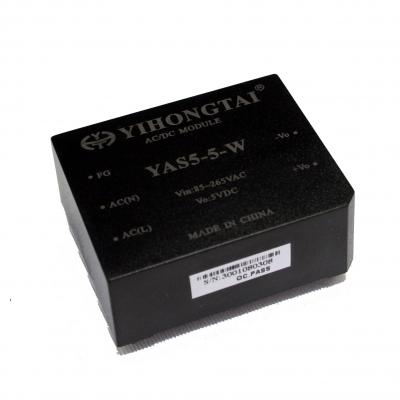

AC DC Converter YAS5W Series

AC DC Converter YAS5W Series

5W economical AC/DC power module supporting 85–265Vac input range, continuous short-circuit protection, and low standby power.

Power Output: 5W
Efficiency: Up to 78%
AC/DC Power Modules YBS5W Series 4000Vac Isolation

AC/DC Power Modules YBS5W Series

Compact 5W AC/DC module with wide 85Vac–305Vac input and reinforced 4000Vac isolation rating for harsh industrial environments.

Power Output: 5W
Isolation: 4000Vac Reinforced
AC/DC Power Modules YBS10W Series

AC/DC Power Modules YBS10W Series

10W miniaturized board mount power module (53.8×28.8×19.0mm) offering 4000Vac isolation and EMC Class B compliance.

Power Output: 10W
Dimensions: 53.8×28.8×19.0 mm
AC-DC Power Modules YBS20W Series

AC-DC Power Modules YBS20W Series

20W high efficiency board mount AC/DC power supply module featuring ultra-low no-load power consumption and 3000Vac isolation.

Power Output: 20W
Isolation: 3000Vac

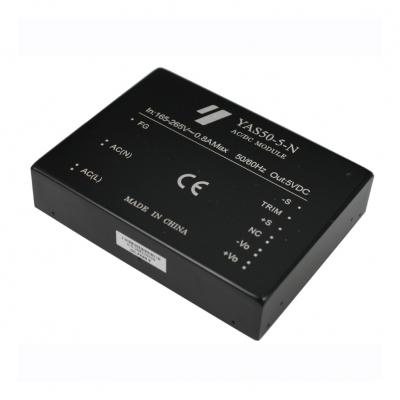

AC-DC Converters YAS50-5-N Encapsulated Module

AC-DC Converters YAS50-5-N

50W encapsulated AC/DC converter with output voltage trim capability, CE certification, and aluminum heat-sink integration.

Power Output: 50W
Feature: Voltage Trim & CE

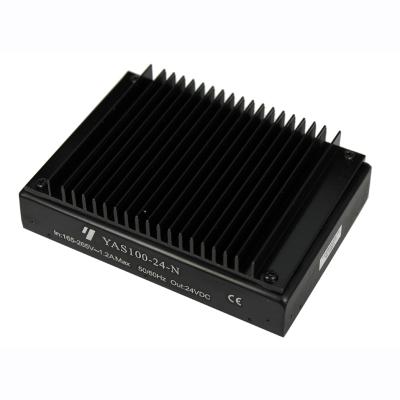

AC/DC Converter YAS100-24-N 100W 24V Output

AC/DC Converter YAS100-24-N

100W heavy-duty board-mount AC/DC converter delivering 24V output, achieving 88% typical efficiency with integrated thermal heatsink.

Power Output: 100W (24V)
MTBF: > 300,000 Hours
AC-DC Power Supply Module RAFS300-220W24 Full Brick 300W

AC-DC Power Module RAFS300-220W24

300W Full-Brick encapsulated AC/DC power supply module featuring active Power Factor Correction (PFC >0.95) and 90% peak efficiency.

Power Output: 300W
Package: Full Brick (Active PFC)

Need Technical Datasheets or OEM Customization?

Our engineering team provides dedicated assistance with voltage specification matching, custom pinouts, thermal management, and sample evaluations for volume procurement.
